Clarion 11.0.13372 Legacy
When I try and compile with debug min or full it hangs, off it compiles.
This is the data/global DLL, the other DLLs compile file with all flags on
I deleted the generated files and regenerated several times.
Any ideas?
There was a recent thread on this - something to do with a recent .net update.
OK - I will search - I have the following versions installed WIN 11
To use, launch the Windows command prompt as administrator and type; reg query “HKLM\SOFTWARE\Microsoft\Net Framework Setup\NDP” /s
Version REG_SZ 2.0.50727.4927
Version REG_SZ 3.0.30729.4926
Version REG_SZ 3.0.4506.4926
Version REG_SZ 3.0.6920.4902
Version REG_SZ 3.5.30729.4926
Version REG_SZ 4.0.0.0
Version REG_SZ 4.8.09032
Ive had this happening on 2 different machines (and 2 VMs on those machines) for some time. Only a particular app - not all of them. The first one stopped working over a year ago (Win11, VM). About 6 months later, the host Win 11 on that machine stopped working. A couple of months ago, a Win 11 hosted on Win10 stopped working - that VM had been my primary dev VM for at least 5 years.
I hadn’t noticed the debug vs release thing since I always use debug.
I now RDP into an AWS instance to work on that app. A bit ridiculous and certainly not convenient.
Let clarify. Not compiler hangs. Sounds, the .NET part of the Project System that communicates with MSBuild has the problem under Win11.
It’s been working under Windows 11 for almost 3 years. Now certainly, something in Win 11 could (and surely has) changed.
The appearance is a compiler or linker hang - the step where the stoppage occurs is during the MS Build portion of the build.
Note that this problem occurs even when compiling from the command line.
As noted above I think I have all the .NET version installed. My Window Previews work in CW. This is a new machine and I installed everything fresh. I rarely compile in debug mode, but trying to find a memory issue C000005 so need debug on. Frustrating.
I wonder if Procmon would be useful to notice something.
This is where it hangs - all my other DLLs and EXE compile w/ debug on, just not the Data DLL
Making cspwobject.obj : pragma changed made cspwobject.obj Making cspwmaplobj.obj : pragma changed made cspwmaplobj.obj 4:37:01.9907576 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 25.7968750 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe" 4:37:01.9908375 PM PrjServer.exe 16036 Process Profiling SUCCESS User Time: 10.0312500 seconds, Kernel Time: 2.1093750 seconds, Private Bytes: 79,503,360, Working Set: 130,801,664 "C:\Clarion\v11\bin\PrjServer.exe" Project "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\AWGbl.cwproj" Configuration "Release" Platform "Win32" Target "Build" SolutionDir "C:\Ragazzi\Clients\Cornerstone\AFW.v40q" SolutionFileName "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\Alarmwin.sln" Verbosity "Normal" BinPath "C:\Windows\Microsoft.NET\Framework\v4.0.30319" AdditionalProperties 2 "ConfigDir" "C:\Users\kevin\AppData\Roaming\SoftVelocity\Clarion\11.0" "NoDependency" "true" MSBuildProperties 4 "BuildingInsideVisualStudio" "true" "ClarionBinPath" "C:\Clarion\v11\bin" "SharpDevelopBinPath" "C:\Clarion\v11\bin" "Signal" "ClarionSemca9588d1-501a-49b1-819d-baa9e2ef10e3" 4:37:02.9859880 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 26.3906250 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe" 4:37:02.9860061 PM PrjServer.exe 16036 Process Profiling SUCCESS User Time: 10.5468750 seconds, Kernel Time: 2.1093750 seconds, Private Bytes: 79,503,360, Working Set: 130,801,664 "C:\Clarion\v11\bin\PrjServer.exe" Project "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\AWGbl.cwproj" Configuration "Release" Platform "Win32" Target "Build" SolutionDir "C:\Ragazzi\Clients\Cornerstone\AFW.v40q" SolutionFileName "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\Alarmwin.sln" Verbosity "Normal" BinPath "C:\Windows\Microsoft.NET\Framework\v4.0.30319" AdditionalProperties 2 "ConfigDir" "C:\Users\kevin\AppData\Roaming\SoftVelocity\Clarion\11.0" "NoDependency" "true" MSBuildProperties 4 "BuildingInsideVisualStudio" "true" "ClarionBinPath" "C:\Clarion\v11\bin" "SharpDevelopBinPath" "C:\Clarion\v11\bin" "Signal" "ClarionSemca9588d1-501a-49b1-819d-baa9e2ef10e3" 4:37:03.9919760 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 26.6406250 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe" 4:37:03.9920061 PM PrjServer.exe 16036 Process Profiling SUCCESS User Time: 10.7343750 seconds, Kernel Time: 2.1093750 seconds, Private Bytes: 79,503,360, Working Set: 130,801,664 "C:\Clarion\v11\bin\PrjServer.exe" Project "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\AWGbl.cwproj" Configuration "Release" Platform "Win32" Target "Build" SolutionDir "C:\Ragazzi\Clients\Cornerstone\AFW.v40q" SolutionFileName "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\Alarmwin.sln" Verbosity "Normal" BinPath "C:\Windows\Microsoft.NET\Framework\v4.0.30319" AdditionalProperties 2 "ConfigDir" "C:\Users\kevin\AppData\Roaming\SoftVelocity\Clarion\11.0" "NoDependency" "true" MSBuildProperties 4 "BuildingInsideVisualStudio" "true" "ClarionBinPath" "C:\Clarion\v11\bin" "SharpDevelopBinPath" "C:\Clarion\v11\bin" "Signal" "ClarionSemca9588d1-501a-49b1-819d-baa9e2ef10e3" 4:37:04.9864955 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 26.7812500 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe" 4:37:04.9865159 PM PrjServer.exe 16036 Process Profiling SUCCESS User Time: 11.0000000 seconds, Kernel Time: 2.1093750 seconds, Private Bytes: 79,503,360, Working Set: 130,801,664 "C:\Clarion\v11\bin\PrjServer.exe" Project "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\AWGbl.cwproj" Configuration "Release" Platform "Win32" Target "Build" SolutionDir "C:\Ragazzi\Clients\Cornerstone\AFW.v40q" SolutionFileName "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\Alarmwin.sln" Verbosity "Normal" BinPath "C:\Windows\Microsoft.NET\Framework\v4.0.30319" AdditionalProperties 2 "ConfigDir" "C:\Users\kevin\AppData\Roaming\SoftVelocity\Clarion\11.0" "NoDependency" "true" MSBuildProperties 4 "BuildingInsideVisualStudio" "true" "ClarionBinPath" "C:\Clarion\v11\bin" "SharpDevelopBinPath" "C:\Clarion\v11\bin" "Signal" "ClarionSemca9588d1-501a-49b1-819d-baa9e2ef10e3" 4:37:05.9816247 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 27.0781250 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe" 4:37:05.9816467 PM PrjServer.exe 16036 Process Profiling SUCCESS User Time: 11.1562500 seconds, Kernel Time: 2.1093750 seconds, Private Bytes: 79,503,360, Working Set: 130,801,664 "C:\Clarion\v11\bin\PrjServer.exe" Project "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\AWGbl.cwproj" Configuration "Release" Platform "Win32" Target "Build" SolutionDir "C:\Ragazzi\Clients\Cornerstone\AFW.v40q" SolutionFileName "C:\Ragazzi\Clients\Cornerstone\AFW.v40q\Alarmwin.sln" Verbosity "Normal" BinPath "C:\Windows\Microsoft.NET\Framework\v4.0.30319" AdditionalProperties 2 "ConfigDir" "C:\Users\kevin\AppData\Roaming\SoftVelocity\Clarion\11.0" "NoDependency" "true" MSBuildProperties 4 "BuildingInsideVisualStudio" "true" "ClarionBinPath" "C:\Clarion\v11\bin" "SharpDevelopBinPath" "C:\Clarion\v11\bin" "Signal" "ClarionSemca9588d1-501a-49b1-819d-baa9e2ef10e3" 4:37:06.9806434 PM Clarion.exe 25660 Process Profiling SUCCESS User Time: 27.9062500 seconds, Kernel Time: 2.0000000 seconds, Private Bytes: 442,605,568, Working Set: 501,067,776 "C:\Clarion\v11\bin\Clarion.exe"

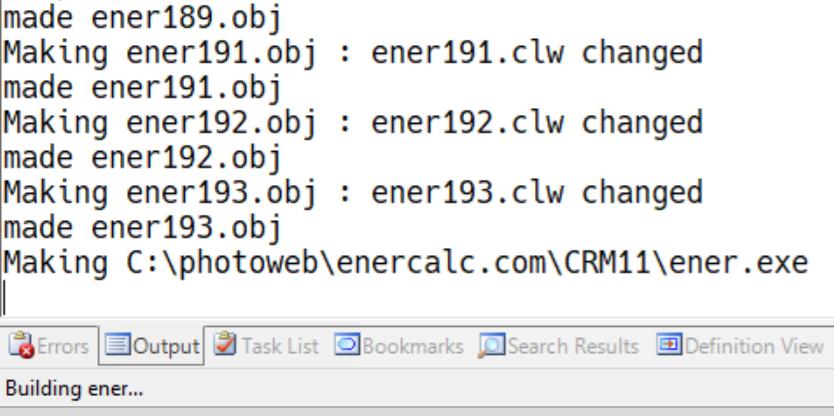

For me, it’s an appgen single exe. Looking at the task mgr, no IO bytes (read,write,other) changing on clarion.exe or prjserver.exe for minutes. Hang looks like this every time (pic attached)
1 Like

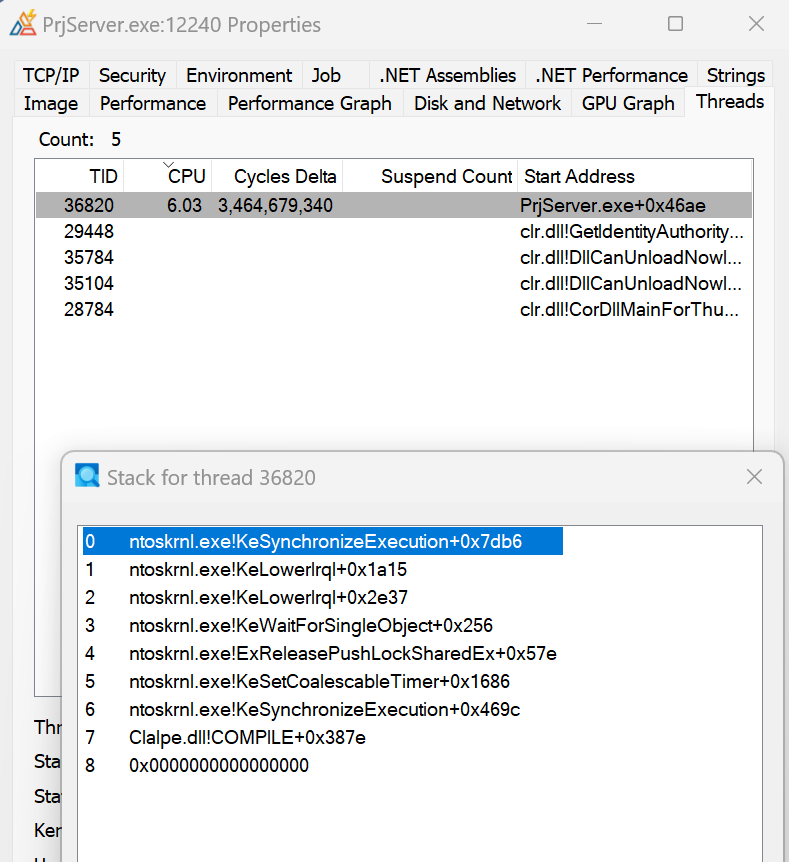

Is there some sufficient (about 100% / number of processor’s cores) CPU usage? If yes, you can use the Process Explorer to determine the thread that eats the CPU: right click on the line with Clarion.exe or PrjServer.exe depending from which is showing CPU usage and select the Properties… item. In the process properties window choose the Threads tab. Select the thread with
instant CPU usage and then press the Stack button below the thread list. The topmost entry corresponds to code that run to the infinite or very-very long loop.
If there is no sufficient CPU usage by PrjServer.exe, the problem can’t be in the linker (CLALPE.DLL).

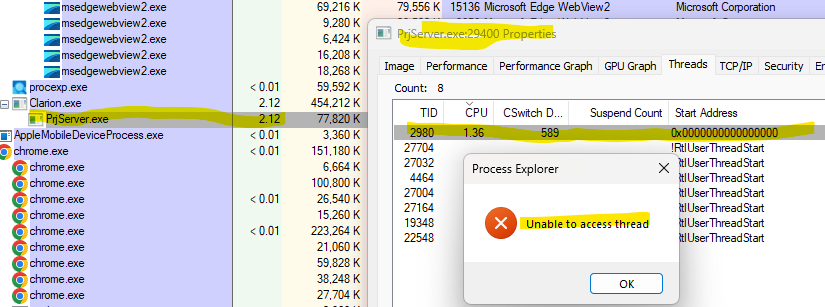

Weill, i did what you said, but got error. It still must be something w/ CW or builder etc since if i turn debug off it compiles.
2.12% of CPU usage mean that there is no synchronization conflict and execution flow is not within an infinite loop. Such percents tell that the process takes and releases CPU quantums in normal mode. Next step to try is to attach the debugger running PrjServer.exe process:
-
Find the PID of PrjServer.exe in the Process Explorer
-
Find the TID of the thread that eats the CPU time
-
Run
cladb -p <pid> -
In the debugger open the Thread List window (main menu → Window → Thread List)
-
Highlight the line for the thread with found TID
-
Press the Ctrl-Space key to suspend selected thread and the press the Space key to show that thread’s in the Stack Trace window
-
Right click on the most bottom upper-level node in the Stack Trace window and choose the Locate In Assembler item in the popup menu
-
Make the height of the disassembler window as much as possible and provide the screenshot.
If execution flow is withing .Net managed code or thread structures are damaged (0-address as the thread start address can tell about this) failing is possible on one of steps.
All the Win32 part of CW is building using internal command-line utility which does not use .Net, and there are no any problems with making projects in any mode.
Multiple reasons are possible why results of making are different in release and debug modes can be. For example, MSBuild can fail on parsing some debug-related parameters in the CWPROJ project.
Alexey - thanks for your replies on this thread. This one seemed like an easy one to test.
I set my hanging compile app to debug, tried to build. It hung. I killed the ide and prjserver and reopened the app. Debug was still on. I copied ener.cwproj to enerdebug.cwproj.
Next, I switched the project to release and compiled successfully. I then closed the app and IDE and copied ener.cwproj to enerelease.cwproj. When I opened them in Beyond Compare - they were identical.
I then went through this exercise with the SLN. Once again, there were no differences between the debug SLN and the release SLN.
I think I am missing something here. Perhaps this is related to the debug options on the IDE’s command line call to MSDebug (which I dont have).
CWPROJ files have separate section of settings applied to build the project in release and debug modes.
If you can build CW projects from IDE, you have MSBuild.
There are several reasons for me why the problem is not within compilers/linker:
- If they would run in some internal infinite loop (e.g. during building of the debug info), the CPU usage would be about equal to
100%/<number of CPU cores> - Everybody can look the list of functions imported by compilers/linker DLLs. These functions can’t be a reason of locks themselves.
- As follows from reports, the problem exists under Win11 only.
But to be sure, the fragment of code where the PrjServer.exe process hangs is required. If it corresponds to any Win32 part of Clarion, I hope I can identify it.
Sorry - I didnt mean to imply that I dont have MSBuild. I know I have that
What I mean was that I dont have the command line parameters that the IDE uses when the IDE calls MSBuild from the command line.
However, I do have my own command line script to call MSBuild and compile a Clarion app. In order to eliminate the IDE and anything the IDE does at build time, I ran the following command which Ive successfully used many times in the past:
“C:\Windows\Microsoft.NET\Framework\v4.0.30319\MSBuild.exe” c:\photoweb\enercalc.com\crm11\ener.cwproj /p:Configuration=Debug;WarningLevel=1;ClarionBinPath=c:\Clarion11\bin;PlatformTarget=x86

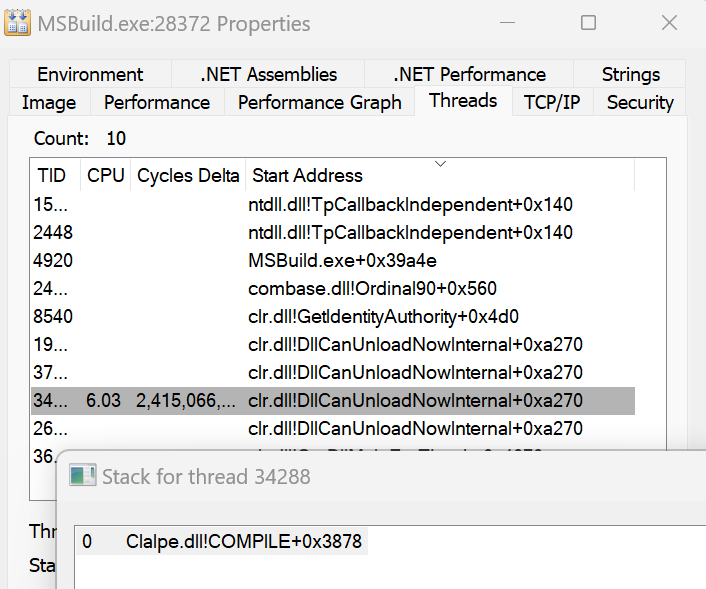

This command also appeared to hang, so I used the instructions you provided previously and found this result in procexp:

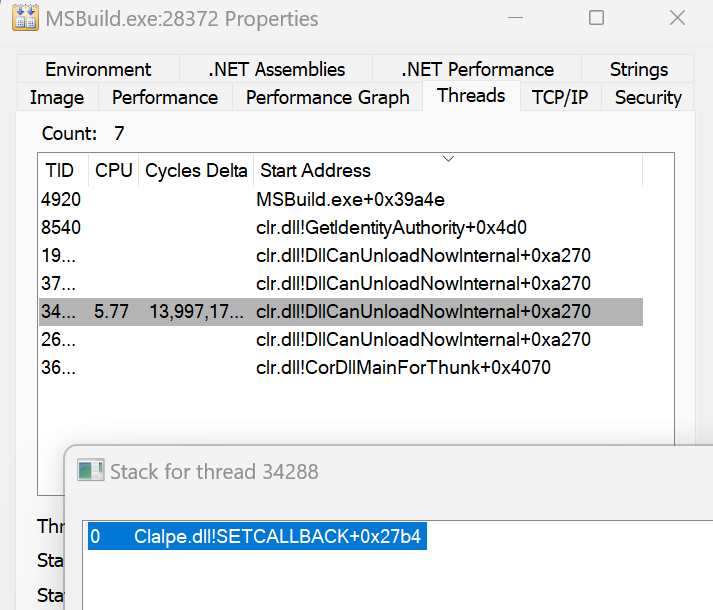

Here’s a better view of the cycles delta column, which is still changing rapidly.

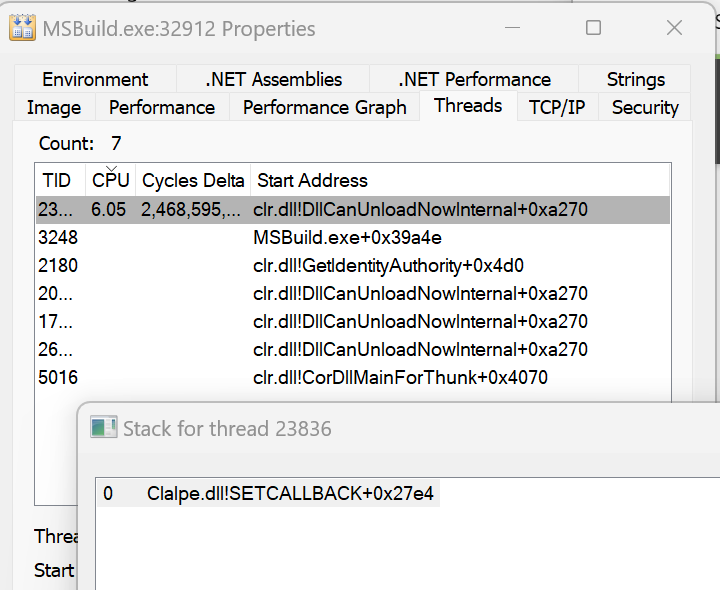

The offset 27E4h from CLALPE.DLL:SETCALLBACK corresponds to a function that processes debug records in the particular OBJ file. I can’t be sure about possible changes made in C11.13815 and later updates, but there were no changes in that code since C60.
The only reason why that code can fall into infinite loop is if the debug info in an OBJ file is damaged.
Could you look in the Process Explorer which OBJ file is opened in the PrjServer. process when it hung? If possible, send that OBJ file to me.
Hello,
I am using 11.0.13244, if that helps.

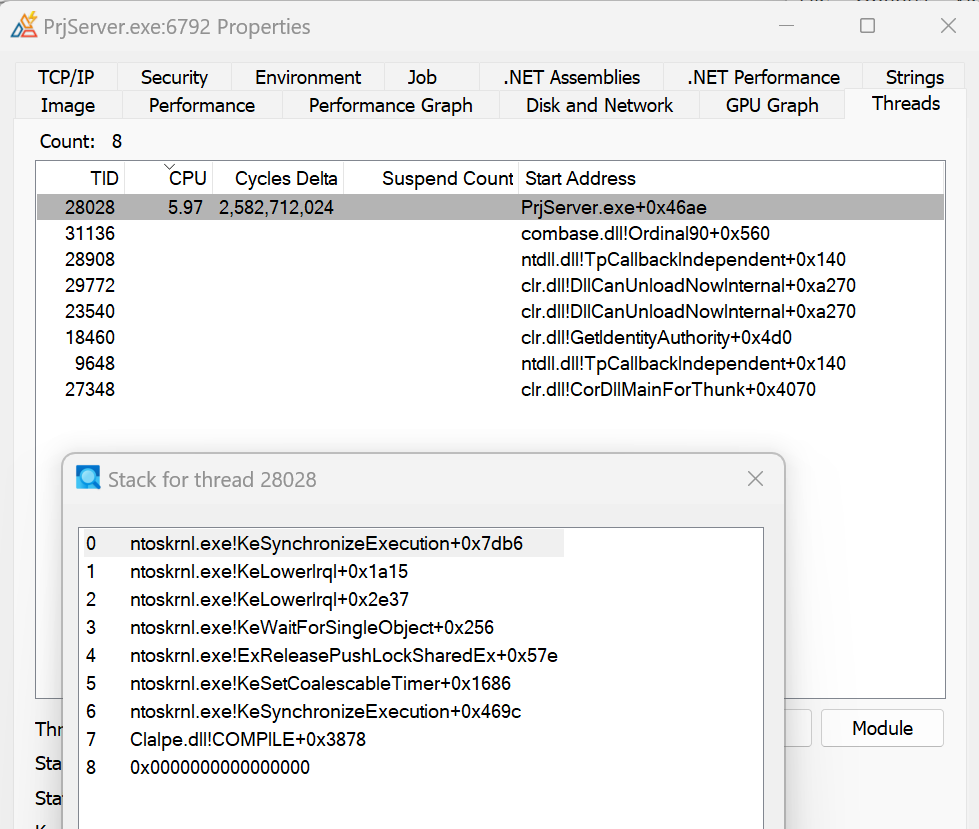

I re-ran my command line MSBuild and this time, the MSBuild process seems to be jumping about between clalpe.dll!COMPILE 0x3878, and clalpe.dll!COMPILE 0x387F and the previously discussed CALLBACK offset.
All comments above relate to running MSBuild from the command
My testing now returns to the IDE for the rest of these comments:

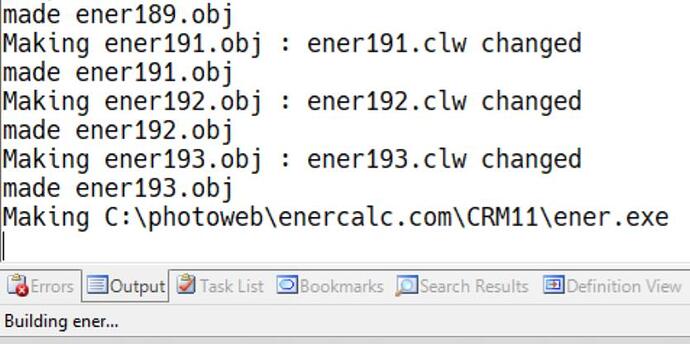

I dont see a way to tell which OBJ is being processed. The IDE just says this: Making C:\photoweb\enercalc.com\CRM11\ener.exe
Hi
Although I do not have anymore to add than what others have reported. I will add my observations.
This issue also occurs in Clarion 10.
I use VM’s for my clients, and this occurred last November (2022) to me in a C10 data.dll running on Windows 11 pro. I ended up created a new Windows 10 VM and moved the development over to that thinking that some update must have caused the original problem.
All went well until recently (still on windows 10) when the issue started again.
I followed a tip from @ljwilson in this thread that fixed the issue, however, I believe the KB update referred to in that thread came out around August this year, so quite clearly after this happened to me the first time.
In a detailed build output on both occasions, the line where everything got stuck was “Building Debug Tables”. I’m unsure if this is everyone’s issue though.
Obviously that fix is not ideal, but I thought I would add what I know.
Mark
