Invalid Record Declaration (47) on MariaDB table

questions
1

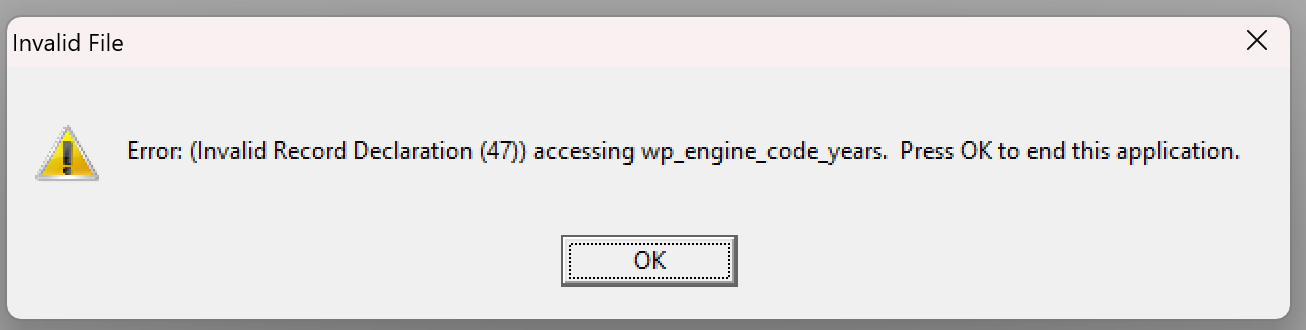

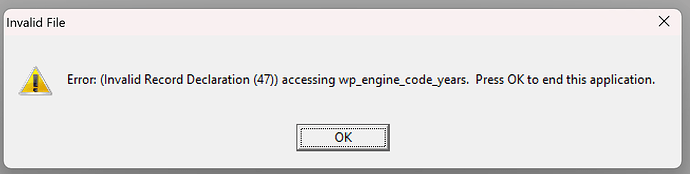

I am trying to access a MariaDB table in a database. I have access to most of them, but there are a couple that I am having problems. I am getting

image1306Ă—330 11 KB

The declaration in Clarion 11

ENGINE_CODE_YEARS       FILE,DRIVER('ODBC'),OWNER(gConnectionString),NAME('wp_engine_code_years'),PRE(ECY),CREATE,BINDABLE,THREAD
ECG_ID_KEY               KEY(ECY:EGC_ID),DUP,NOCASE
MDL_ID_KEY               KEY(ECY:MDL_ID),DUP,NOCASE
ENGINE_CODE_MODEL_YEAR_KEY KEY(ECY:EGC_ID,ECY:MDL_ID,ECY:YEAR),NOCASE
Record                   RECORD,PRE()
EGC_ID                      LONG
MDL_ID                      LONG
YEAR                        SHORT
                         END
                       END

and in Maria DB the statement to create which runs fine.

CREATE TABLE IF NOT EXISTS wp_engine_code_years (
  egc_id INT(14),
  mdl_id INT(14),
  year SMALLINT,
  INDEX ecg_id_key (EGC_ID),
  INDEX mdl_id_key (MDL_ID),
  UNIQUE engine_code_model_year_key (EGC_ID, MDL_ID, YEAR)
);

Any ideas?

2

Can you connect to the database and import the definition into your dictionary?

3 Likes
3

I would be concerned about the definition of INT(14)
If I read INT - MariaDB Knowledge Base Correctly
then it’s an unsigned 14 digit Integer. A Clarion Long would be a plain INT or INT4

I think ether the SQL definition needs to change to INT4 or maybe use a REAL on the clarion side.

4

I have other fields that use INT(14) with no issue. I recreated the table with INT(11) and same issue.

5

Try just plain INT and see if that’s OK
Also try active clarion driver tracing. The logs tend to have additional information.

6

OK. Getting somewhere.

05A80H(2) 00:28:47.762 Invalid field name: YEAR
05A80H(2) 00:28:47.762 Valid field names are:
05A80H(2) 00:28:47.762 id
05A80H(2) 00:28:47.762 tmc_id
05A80H(2) 00:28:47.762 mdl_id
05A80H(2) 00:28:47.762 year
05A80H(2) 00:28:47.762

If year is a reserved word, then why does it say that year is a valid field name?

7

That’s clarion just giving you the column names.
If you can just change the name to _year or something and it will be all good.

8

Hi Ron,

That list is showing you that on the database the field names are id, tmc_id, mdl_id and year. Clarion is expecting to see egc_id, mdl_id and year.

Maybe you created wp_engine_code_years on the database earlier with the wrong definition? Because you now have the “if not exists”, the new definition is not going to overwrite it.

Jon

9

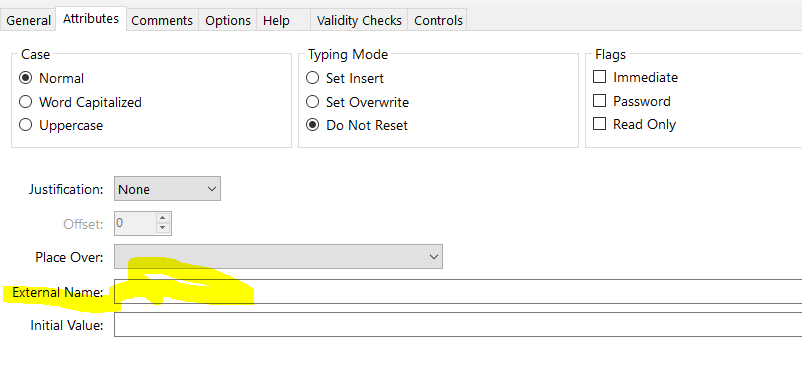

If Clarion doesn’t like YEAR a s column name try in the DCT to use a different name but use the External name as per DB:

MyClarionYEAR SHORT,name('year')

image802Ă—375 7.48 KB

10

Just had to put in a name to fool it.

TRANSMISSION_CODE_YEARS  FILE,DRIVER('ODBC','/ALLOWDETAILS=TRUE /LOGFILE=odbc.log'),OWNER(gConnectionString),NAME('wp_transmission_code_years'),PRE(TMY),CREATE,BINDABLE,THREAD
TMC_ID_KEY               KEY(TMY:TMC_ID),DUP,NOCASE
MDL_ID_KEY               KEY(TMY:MDL_ID),DUP,NOCASE
CODE_MODEL_YEAR_KEY      KEY(TMY:TMC_ID,TMY:MDL_ID,TMY:YEAR),NOCASE
Record                   RECORD,PRE()
ID                          LONG
TMC_ID                      LONG
MDL_ID                      LONG
YEAR                        SHORT,NAME('year')
                         END
                       END
11

Ron,

so did it help?
