Sheet and Tabs not showing Colors specified in Window

questions
, ,
1

I am making a calculator in Clarion 11 and is trying to do it as handcoded instead of using the appgen.
I am however using the window designer to create the window. The window is a simple window with a sheet and two tab controls.
I am going for a dark interface and has set 'using visualstyles' to false.

When I preview the window in the formatter it looks ok. The window, sheet and tab cotrols are black with white text as they are supposed to be.

But when I compile the project the sheet and tab goes white and the text is invisible

Kalkulator          WINDOW('Kalkulator'),AT(,,456,292),SYSTEM,STATUS,
FONT('Segoe UI Semibold',11,,FONT:regular),COLOR(COLOR:Black)
SHEET,AT(25,14,405,234),USE(?SHEET1),FONT(,,COLOR:White), COLOR(COLOR:Black)
    TAB('Basic'),USE(?tabBasic),ICON(ICON:Clarion)
        BUTTON('MC'),AT(53,78,30,21),USE(?   btnMC),          FONT(,,COLOR:White,FONT:bold), COLOR(0404040H),

Any suggestions?

brgds
Werner

2

I would try removing the manifest

3

Werner,

the manifest do not need to be removed.

Set ?Sheet1{Prop:NoTheme}=True.

The help file says “It prevents the Operating System theme color from being applied to the SHEET /TAB controls allowing you to set the Colors.”.

Jens

4

PROP:NoTheme can also be set on a LIST otherwise in Windows 10+ you cannot change the Color of the Header. That would also prevent the new in C9 column sorting using colors.

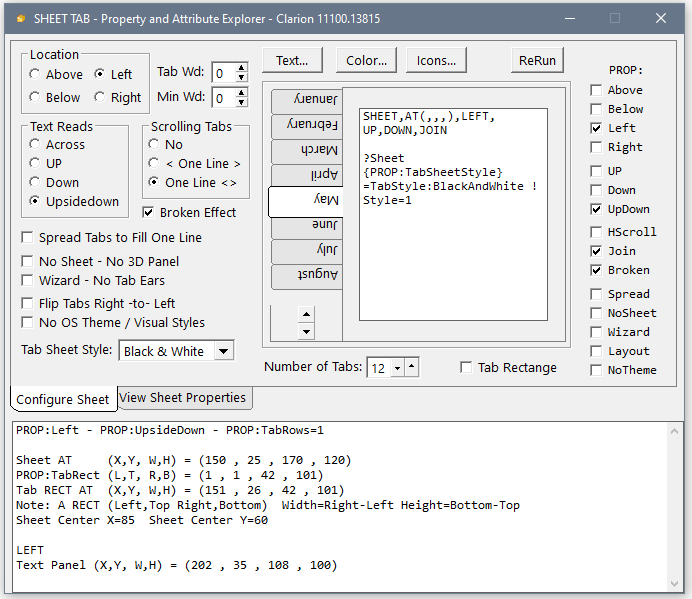

This is a hand cloded example that explores every property you can set on Sheets including NoTheme

17541433942016294892757261581372
17541433942016294892757261581372692×599 24.9 KB

5

I deleted the manifest and now it seems to be working.
Thank you.

Brgds
Werner

6

In the Window Designer on the Toolbar near the end is a Latched Button that lets you select between having Visual Styles On or Off. That changes the look in the Designer, but when ON it also changes the Preview to use a Manifest for Visual Styles. You could try a Preview with it Latched Down to see your colors not work.

This setting is only for Designer and Preview, it does not change Visual Styles in the built program.

7

Have you got Include('equates.clw') beneath your program ?

8

I have the foll. includes in the program:

INCLUDE('equates.clw'),ONCE
INCLUDE('KeyCodes.CLW')

So you suggest others?

Werner

9

equates have got the colours in, but you should have also got a compiler error if you were using a color equate and it wasnt included.

Have you tried changing the visualstyles to true and do you have a manifest?

10

For the record, clarion implies two includes when you write:

  PROGRAM
  MAP
  END

The compiler behaves as if you’d written:

  MAP
    INCLUDE('builtins.clw'),ONCE
  END
  INCLUDE('equates.clw'),ONCE

So there is no need to do the include yourself.
Class Method calls to Message() and Clip() get Syntax Error: Unknown Function Label - questions - ClarionHub

Mark

11

Better memory than me currently, I blame the chemical warfare in the Tobacco.
