Yet another Bevel Tool

jslarve · December 17, 2020, 7:25am

I posted a new version of my old bevel tool. GitHub - jslarve/BevelTool3: A small Clarion program for playing with the BEVEL attribute on controls that support bevels.

The newer IDE has a bevel editing feature, but this one might be more fun to play with. Or not.

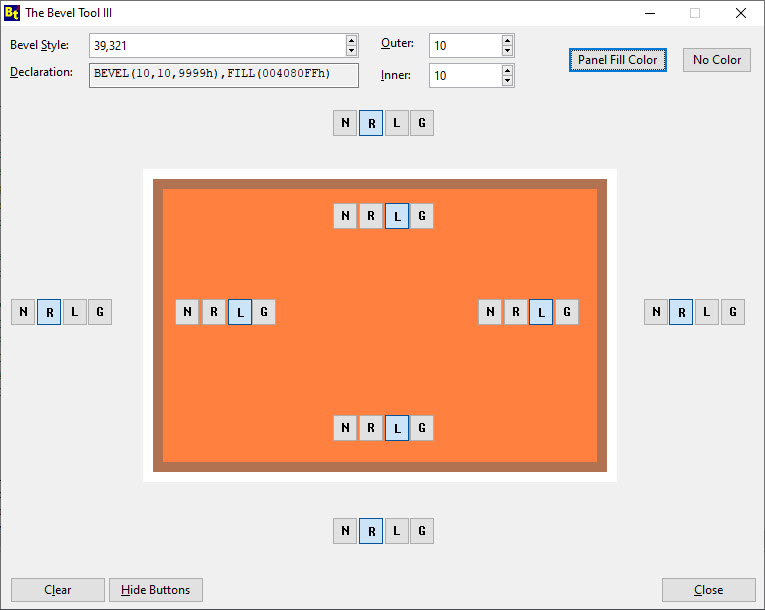

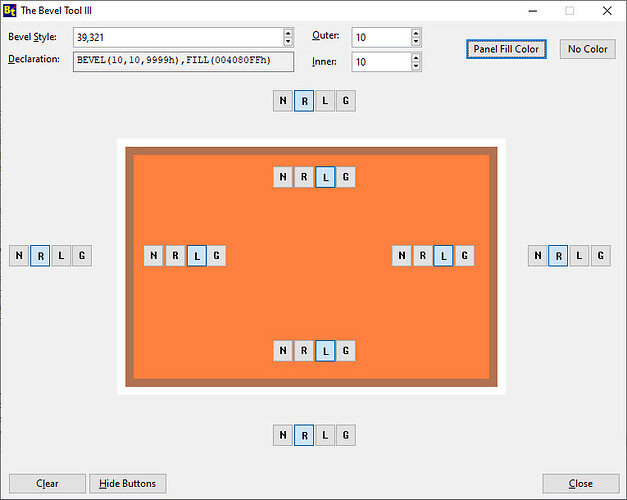

Here’s a screen shot:

CarlBarnes · December 17, 2020, 10:27pm

A suggestion would be a way to save and restore settings. To keep it simple use an INI format with a file extension Bevel.

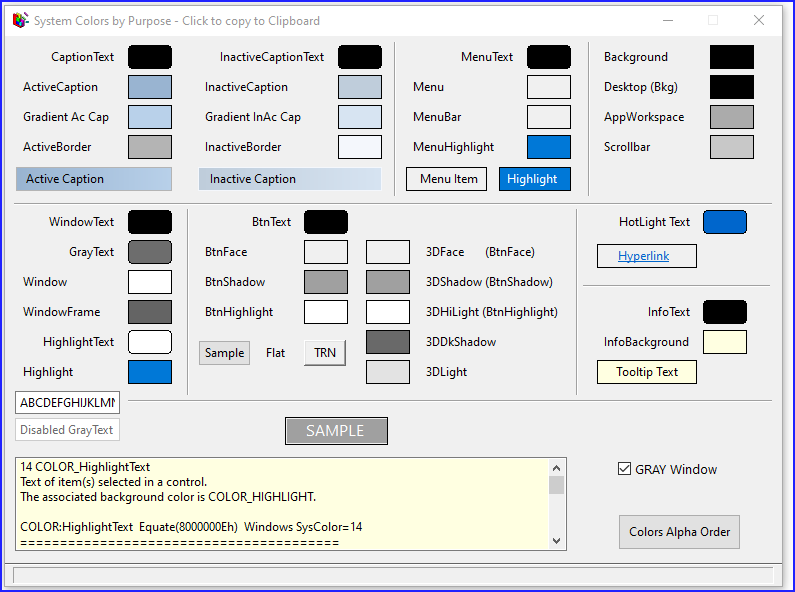

Often I use a PANEL to create a lines to separate parts of the window.

jslarve · December 17, 2020, 10:45pm

That’s pretty neat-o, Carl. And thanks for the suggestion.

CarlBarnes · December 17, 2020, 11:38pm

The screen shot in this post added to your ReadMe.MD would help to understand.

The Markup for having it in an “Images” subfolder:

![Screen Shot](images/ScreenCapBT.png)

jslarve · December 17, 2020, 11:59pm

That was my original intent. Thanks.
I could have sworn that I have added images my .md files through the github web interface before via D&D or copy/paste. Maybe that was MS Team Services.

CarlBarnes · December 18, 2020, 5:28pm

I have a similar more compact Hex function that does the BShift / BAnd once.

Hex8 PROCEDURE(LONG Lng)!,STRING
LngAdj  LONG,AUTO
L       BYTE,DIM(4),OVER(LngAdj)
Hex     STRING('0123456789ABCDEF'),STATIC
HX      STRING(9),AUTO
  CODE
  LngAdj = BAND(BSHIFT(Lng, -4),0F0F0F0Fh) + 01010101h
  HX[1]=HEX[L[4]] ; HX[3]=HEX[L[3]] ; HX[5]=HEX[L[2]] ; HX[7]=HEX[L[1]]
  LngAdj=BAND(Lng,0F0F0F0Fh)  + 01010101h
  HX[2]=HEX[L[4]] ; HX[4]=HEX[L[3]] ; HX[6]=HEX[L[2]] ; HX[8]=HEX[L[1]]
  HX[9]='h'
  RETURN HX

gist.github.com

https://gist.github.com/CarlTBarnes/a05f6318fd1c7eece9802b0aacda4e3d

Hex8_FromLong.clw

  MAP
    Hex8(LONG Lng),STRING           !Return 8 digit hex with trailing 'h'
    HexFmt(LONG Lng),STRING         !Return minimum hex pairs w/o 'h'
    HexDigits(ULONG Lng),STRING     !Return minimum Hex Digits, may be odd
    HexPairs(ULONG Lng),STRING      !Return minimum Hex Pairs
    HexClarion(ULONG Lng),STRING    !Clarion Valid Hex with trailing 'h', plus leading '0' for A-F
  END

!=================================
Hex8 PROCEDURE(LONG Lng)!,STRING    !Return 8 digit hex with trailing 'h'

This file has been truncated. show original

jslarve · December 18, 2020, 5:49pm

Thanks Carl. I’ve been using ultoa() quite a bit as well. I used to use ltoa(), but was having issues with the signed bit sometimes.

CarlBarnes · December 18, 2020, 7:12pm

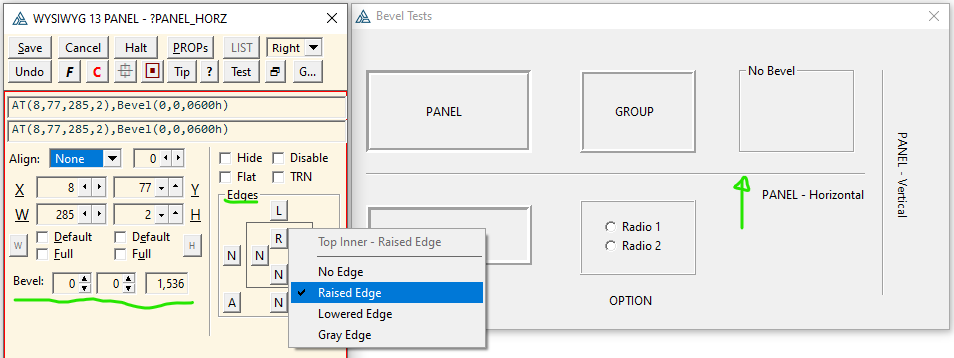

My Window Preview class Resize Control WYSIWYG window has Bevel settings to allow designing on a live window. It is very compact so the resizer window can be small. The edges are set using pop ups.

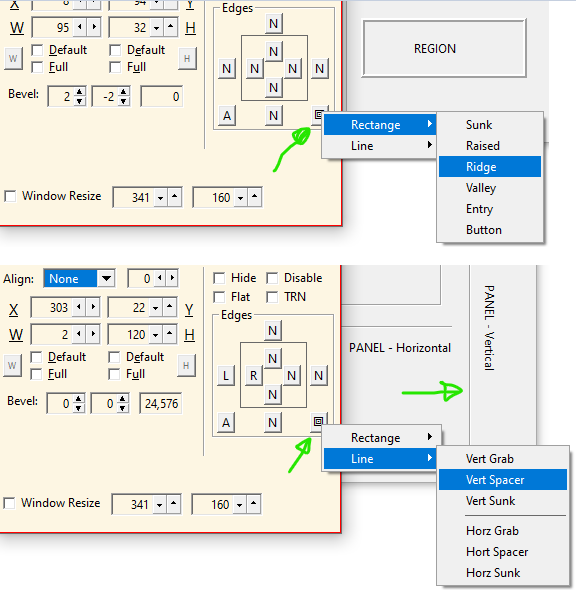

On the bottom right is a button that pops up some of my favorites:

I think you gave me many of these. You can add this popup to BT.

BevPopRtn ROUTINE
  DATA
Ib &LONG        !Inner Bevel
Ob &LONG        !Outer Bevel
Sb &LONG        !Bevel Style
Wb LONG         !Width for lines
Hb LONG         !Height for Lines
  CODE
  Ib &= Poz:BevelIn
  Ob &= Poz:BevelOut
  Sb &= Poz:BevelSty
  EXECUTE POPUP('Rectange{{Sunk|Raised|Ridge|Valley|Entry|Button}|Line{{Vert Grab|Vert Spacer|Vert Sunk|-|Horz Grab|Hort Spacer|Horz Sunk}')
  BEGIN ; Ib=0  ; Ob=-3 ; Sb=0            ; .  !Rect Sunk
  BEGIN ; Ib=0  ; Ob=3  ; Sb=0            ; .  !Rect Raised
  BEGIN ; Ib=-2 ; Ob=2  ; Sb=0            ; .  !Rect Ridge
  BEGIN ; Ib=2  ; Ob=-2 ; Sb=0            ; .  !Rect Valley
  BEGIN ; Ib=-1 ; Ob=-1 ; Sb=0            ; .  !Rect Entry
  BEGIN ; Ib=1  ; Ob=1  ; Sb=0            ; .  !Rect Button
  BEGIN ; Ib=0  ; Ob=0  ; Sb=4488h ; Wb=2 ; .  !Vert Line Grab
  BEGIN ; Ib=0  ; Ob=0  ; Sb=6000h ; Wb=1 ; .  !Vert Line Spacer
  BEGIN ; Ib=0  ; Ob=2  ; Sb=6000h ; Wb=1 ; .  !Vert Line Sunk
  BEGIN ; Ib=0  ; Ob=0  ; Sb=4488h ; Hb=2 ; .  !Horz Line Grab
  BEGIN ; Ib=0  ; Ob=0  ; Sb=0600h ; Hb=2 ; .  !Horz Line Spacer
  BEGIN ; Ib=0  ; Ob=2  ; Sb=0600h ; Hb=2 ; .  !Horz Line Sunk
  ELSE ; EXIT
  END

pbouma · December 19, 2020, 2:52pm

nice, smart etc. but…what is a bevel tool ? Purpose ?

jslarve · December 19, 2020, 4:02pm

Some controls have a BEVEL attribute. In the old days, there was no visual utility for determining which of the 16 bits of the STYLE should be on or off. So it seemed like “magic” and guesswork to set the bevel STYLE attribute.

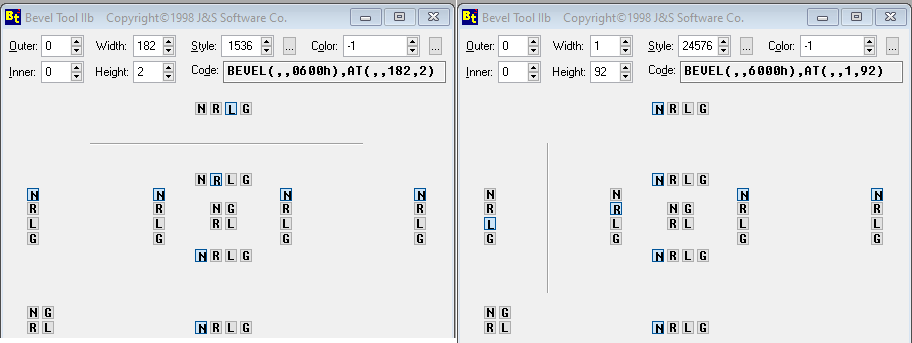

So, after reading an article about bevels by Lisa Vaughn of ToolCraft, I wrote an example program called the Bevel Tool. That program “worked”, but the code was a bit klunky.

I re-wrote the logic to make use of the VALUE() setting of RADIO controls to manage the bits, thus decreasing the amount of translation code needed, and hopefully make bevels a little more self explanatory.

totalhip · December 19, 2020, 6:58pm

Whoa! That is a real step back in time.

totalhip · December 21, 2020, 2:30pm

Have not checked recently, but is it still true that using any bevel setting on a group prevents the text from being displayed? I have long thought a control that would just be the top horizontal line of a group could be very useful.

CarlBarnes · December 21, 2020, 11:57pm

Correct a GROUP(‘Never See This’) with BEVEL(…) will NOT show ‘Never See This’

I agree I would like a Group(‘Text’) with just the top line showing. You can create that as a PROMPT and PANEL or GROUP. If you wanted to do it a lot you could make a CONTROL Template.

CarlBarnes · January 15, 2021, 8:57pm

@jslarve I could not find my Tech Bulletin but I did find the Lisa Vaughn article on Bevels

Bevel_LisaVaughn_ClaWinJurn.PDF (763.9 KB)

jslarve · January 15, 2021, 10:22pm

Neat-o. Thank you Carl.
