AnyScreen Debugging - List Column Picture @n$(7)B shows $0 not blank

questions
1

I am attempting to work through several remaining AnyScreen bugs that exist in the AS version included with the v13815 IDE. For this list column problem, I have not yet been able to create a simple example that shows the problem, even though my full app clearly displays it in these images with an Amt column formatted as @n$(7)B.

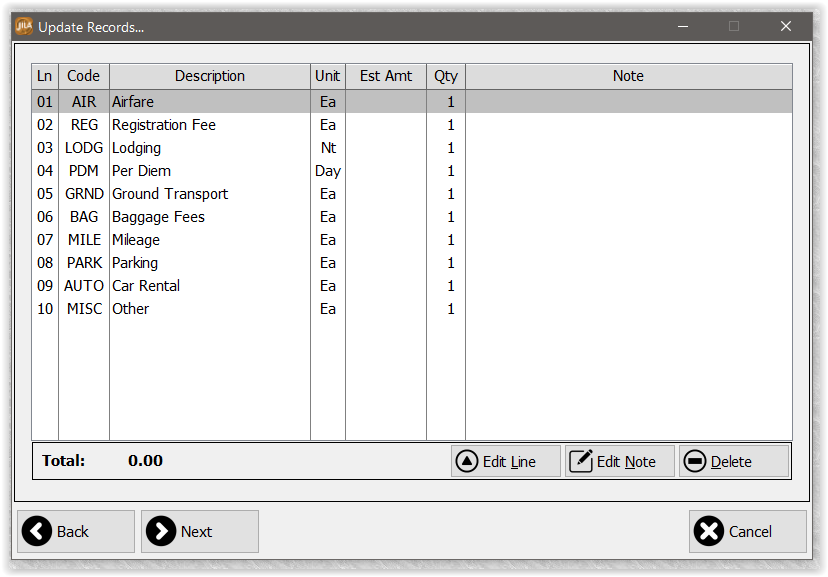

App run as desktop - NO zeros in Amt column

AnyScreenListZeroB
AnyScreenListZeroB828×577 39.1 KB

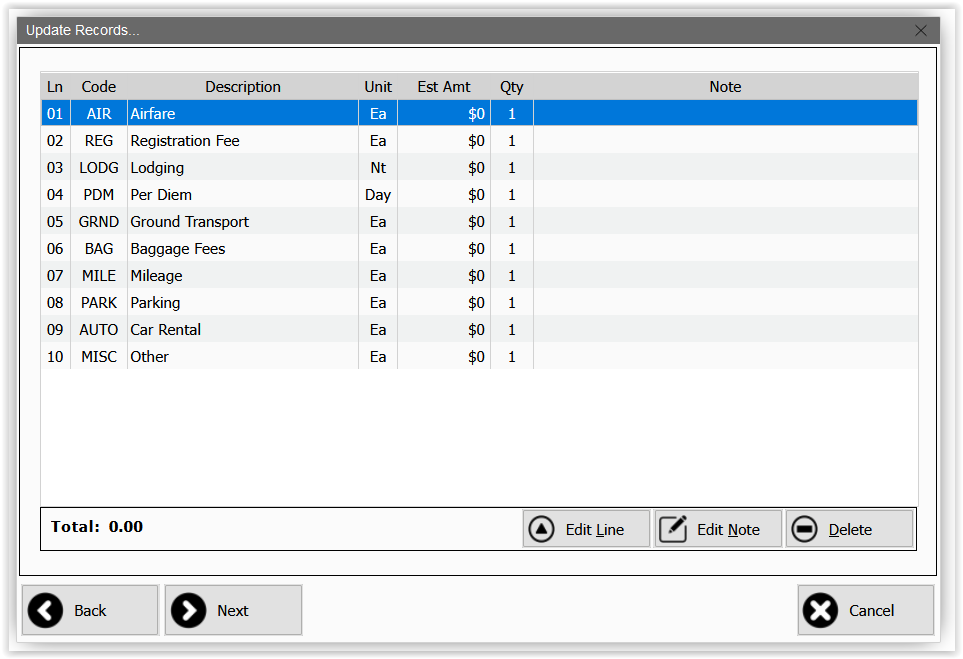

App run as AnyScreen HTML5 - ALL zeros in Amt column

AnyScreenListZero
AnyScreenListZero963×659 32 KB

In both a simple queue list example AND with the shipping Invoice example, zeros are correctly NOT shown. I am guessing that some other screen property setting causes AnyScreen to incorrectly display numeric pictures. Any suggestions to try?

2

The blank attribute isnt working in the anyscreen, which makes me wonder what would happen if the anyscreen used a right justified string to display the value? I’m assuming you want to get an identical column to the main desktop app, ie nothing displays in the column?

3

This is NOT true in all cases as my attempts to create a simple example have shown.
Something else (property setting or who knows what?) causes the problem in display.

4

In my List Format Parser I recently added a way to take a QUEUE and create a FORMAT so it is super easy to make a LIST for any Queue.

I made a Test Queue with a bunch of numbers and Format with and without ‘B’ for you to try to see what works in AS and submit. …

Guess I would duplicate the LIST then change the Format to Not have Signed values to see if that matters i.e. find ‘@n-’ and replace with ‘@n’, plus ‘@n$-’ to ‘@n$’ . You could make another with no commas i.e. ‘@n_’. Having the Format split into lines makes this easy to see and do, that is the main feature of the List Format Parser

ViewQueue_TestQ PROCEDURE()

TestQ   QUEUE,PRE(TstQ)
Byte_0   BYTE
Byte_B   BYTE
Short_0  Short
Short_B  Short
Long_0    LONG
Long_N    LONG    !oops should be Long_B
Decimal9_0 DECIMAL(9)
Decimal9_B DECIMAL(9)
Decimal92_0 DECIMAL(9,2)
Decimal92_B DECIMAL(9,2)
DecimalDol92_0 DECIMAL(9,2)
DecimalDol92_N DECIMAL(9,2)     !oops should be 92_B
        END

ListWindow WINDOW('LIST Queue TestQ'),AT(,,506,154),GRAY,SYSTEM,FONT('Segoe UI',10),RESIZE
 LIST,AT(2,2 ), FULL, hVSCROLL,VCR, |
       USE(?LIST:TestQ ), |
        FROM(    TestQ ), |
 FORMAT('20R(2)|M~Byte_0~C(0)@n3@' &|
        '20R(2)|M~Byte_B~C(0)@n3b@' &|
        '25R(2)|M~Short_0~C(0)@n-7@' &|
        '25R(2)|M~Short_B~C(0)@n-7b@' &|
        '48R(2)|M~Long_0~C(0)@n-14@' &|
        '48R(2)|M~Long_N~C(0)@n-14b@' &|
        '41R(2)|M~Decimal9_0~C(0)@n-12@' &|
        '41R(2)|M~Decimal9_B~C(0)@n-12b@' &|
        '44R(2)|M~Decimal92_0~C(0)@n-13.2@' &|
        '44R(2)|M~Decimal92_B~C(0)@n-13.2b@' &|
        '44R(2)|M~DecimalDol92_0~C(0)@n$-13.2@' &|
        '44R(2)|M~DecimalDol92_N~C(0)@n$-13.2b@') ! ,|
    END
!  #FIELDS(TstQ:Byte_0, TstQ:Byte_B, TstQ:Short_0, TstQ:Short_B, TstQ:Long_0, TstQ:Long_N, TstQ:Decimal9_0, TstQ:Decimal9_B, TstQ:Decimal92_0, TstQ:Decimal92_B, TstQ:DecimalDol92_0, TstQ:DecimalDol92_N)

    CODE
  CLEAR(TestQ)
  LOOP 10 TIMES ; ADD(TestQ) ; END
  OPEN(ListWindow)
  ACCEPT
    CASE EVENT()
    END
    CASE ACCEPTED()
    OF ?LIST:TestQ
       GET(TestQ,CHOICE(?LIST:TestQ))
    END
    CASE FIELD()
    OF ?LIST:TestQ
       GET(TestQ,CHOICE(?LIST:TestQ))
       CASE EVENT()
       OF EVENT:NewSelection
          ! CASE KEYCODE()
          ! OF MouseLeft2
          ! OF MouseRight
          ! END
       END
    END
  END !ACCEPT
  CLOSE(ListWindow)

image946×257 15.3 KB

5

Thank you very much.
Using your posted code, I can confirm that NO columns formatted with B(lank) show zeros with AnyScreen. I need to test more using other format options.

6

Caused by the use of brackets for negative numbers.
@n3B Blank displayed
@n-3B Blank displayed.
@n(3)B Blank NOT displayed
