How to create custom designer controls for the IDE

brahn · June 11, 2014, 7:36pm

This was inspired by a discussion on the cw-chat skype group. The default values for control in the Clarion window designer are not always the best but they are locked up in the DLLs with no way to configure the properties.

Edit: I have put an example project on GitHub - https://github.com/fushnisoft/CustomClarionIDEControls

However, it looks like it is possible to create custom versions and have them appear in the designer!

Create a custom control like this:

gist.github.com

https://gist.github.com/fushnisoft/eb378e2d8d4d016fe2c0

CustomPanelControl.cs


using SoftVelocity.ClarionNet.CommonProperties;
using SoftVelocity.ClarionNet.Windows;
using System.ComponentModel;
using System.ComponentModel.Design;
using System.Drawing;
namespace CustomPanelControl
{
    [WindowDesignerClassAttribute, Designer(typeof(PanelControlDesigner), typeof(IDesigner)), ToolboxBitmap(typeof(MyPANEL), "PANEL.ico")]
    public class MyPANEL : SoftVelocity.ClarionNet.Windows.PANEL

This file has been truncated. show original

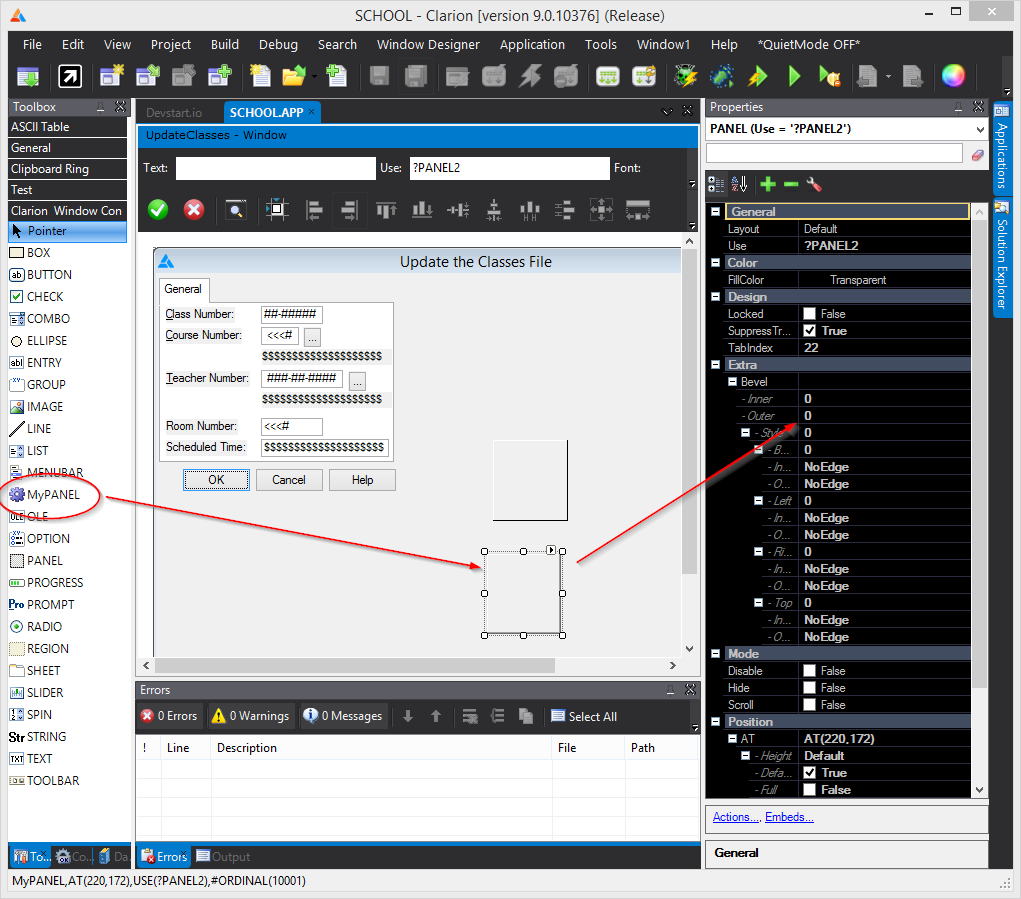

Put it in the right place and then you can see it in the toolbox:

aaaaand go!
