Most of the source code to see how it works without download
QuickPieMain PROCEDURE
MaxSlices EQUATE( 5 )
SliceValue LONG,DIM(MaxSlices)
SliceColor LONG,DIM(MaxSlices)
SliceTotal LONG
PieDepth LONG(20)
PieEmptyPct LONG
PieWholeValue SIGNED !Usually Total but may be adjusted by Empty Pct
PieAnglePct LONG !This could be degrees 0-360 and then % = Angle/360 * 100
PieAngleValue LONG !Whole Value x % Angle
PieIsElipse BOOL !False makes it Circle, but Elipse can have a nice look
AutoRefresh BOOL(1) !Every change instantly refreshed
Ndx LONG

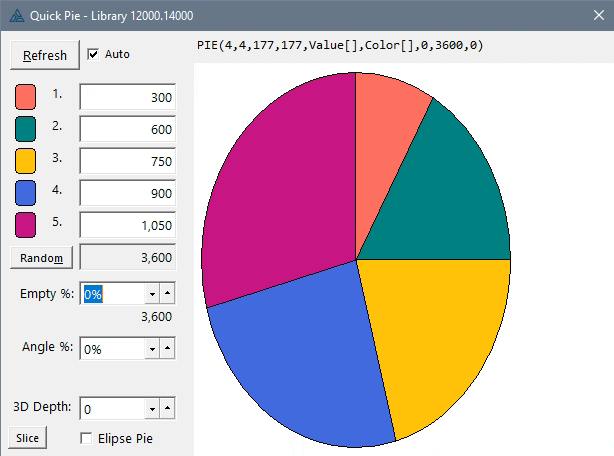

Window WINDOW('Quick Pie'),AT(,,350,200),GRAY,IMM,SYSTEM,FONT('Segoe UI',10),RESIZE
ENTRY(@n11),AT(45,25,55),USE(SliceValue[1]),RIGHT
ENTRY(@n11),AT(45,40,55),USE(SliceValue[2]),RIGHT
ENTRY(@n11),AT(45,55,55),USE(SliceValue[3]),RIGHT
ENTRY(@n11),AT(45,70,55),USE(SliceValue[4]),RIGHT
ENTRY(@n11),AT(45,85,55),USE(SliceValue[5]),RIGHT
ENTRY(@n11),AT(45,100,55),USE(SliceTotal),SKIP,RIGHT,COLOR(COLOR:BTNFACE),TIP('Total'),READONLY
BOX,AT(8,25,12,12),USE(?SliceColorBox_1),COLOR(COLOR:Black),FILL(0616FFFh),ROUND,LINEWIDTH(1)
BOX,AT(8,40,12,12),USE(?SliceColorBox_2),COLOR(COLOR:Black),FILL(0808000h),ROUND,LINEWIDTH(1)
BOX,AT(8,55,12,12),USE(?SliceColorBox_3),COLOR(COLOR:Black),FILL(007C1FFh),ROUND,LINEWIDTH(1)
BOX,AT(8,70,12,12),USE(?SliceColorBox_4),COLOR(COLOR:Black),FILL(0E16941h),ROUND,LINEWIDTH(1)
BOX,AT(8,85,12,12),USE(?SliceColorBox_5),COLOR(COLOR:Black),FILL(08515C7h),ROUND,LINEWIDTH(1)
STRING('1.'),AT(29,25),USE(?Prompt_Pie_1)
STRING('2.'),AT(29,40),USE(?Prompt_Pie_2)
STRING('3.'),AT(29,55),USE(?Prompt_Pie_3)
STRING('4.'),AT(29,70),USE(?Prompt_Pie_4)
STRING('5.'),AT(29,85),USE(?Prompt_Pie_5)
PROMPT('Empty %:'),AT(11,119),USE(?PieEmptyPct:Prompt1)
SPIN(@n3~%~),AT(45,118,55,11),USE(PieEmptyPct),HVSCROLL,TIP('Percent of Pie that is Empty, n' & |
'ormally 0%<13,10>This calculates a Whole Value > 100% of the Total:<13,10>WholeValu' & |
'e = SliceTotal / (1 - Pie Empty%/100)<13,10>This Whole Value passed to PIE() create' & |
's the Empty Slice'),RANGE(0,99)
STRING(@n11b),AT(44,130,56,10),USE(PieWholeValue),RIGHT(2)
PROMPT('Angle %:'),AT(12,144),USE(?PieAnglePct:Prompt1)
SPIN(@n3~%~),AT(45,144,55,11),USE(PieAnglePct),HVSCROLL,TIP('Starting point of the first sli' & |
'ce of the pie, measured as a fraction of the wholevalue.<13,10>If omitted (or zero)' & |
', the first slice starts at the twelve o''clock position.'),RANGE(0,99)
STRING(@n11b),AT(44,156,56,10),USE(PieAngleValue),RIGHT(2)
PROMPT('3D Depth:'),AT(7,172),USE(?PieDepth:Prompt1)

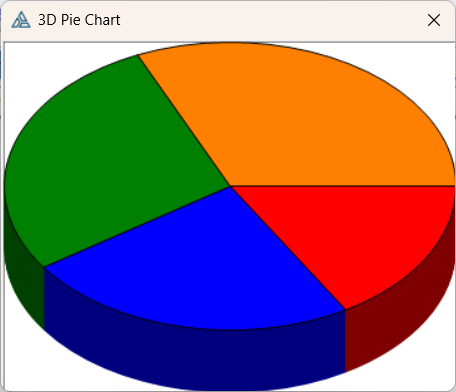

SPIN(@n2),AT(45,172,55,11),USE(PieDepth),HVSCROLL,TIP('The depth of the three-dimensional pi' & |
'e chart<13,10>If omitted or zero the chart is two-dimensional'),RANGE(0,99)
CHECK('Elipse Pie'),AT(45,187),USE(PieIsElipse),TIP('Check for Elipse that can have a diffen' & |
't 3D look')
BUTTON('&Refresh'),AT(5,4,40),USE(?RefreshBtn),TIP('Refresh Pie to draw with current parameters')
CHECK('Auto'),AT(49,7),USE(AutoRefresh),SKIP,FONT(,8),TIP('Auto Refresh on all changes')
IMAGE,AT(110,15),FULL,USE(?PieImage1)
TEXT,AT(110,3,,10),FULL,USE(Glo:PieCode),SKIP,FLAT,FONT('Consolas',10),COLOR(COLOR:BTNFACE), |
TIP('PIE( X,Y, Width,Height, <13,10>Slices[], Colors[], <13,10>Depth, WholeValue, ' & |
'<13,10>StartAngle)'),READONLY,SINGLE
BUTTON('Rando&m'),AT(5,101,36,11),USE(?RandomBtn),FONT(,8),TIP('Random 5 Slice Values')
BUTTON('Slice'),AT(4,186,22,11),USE(?SliceBtn),FONT(,8),TIP('Random Slice of Pie')
ELLIPSE,AT(114,19,177,177),USE(?EllipseForSizing_HIDE),COLOR(COLOR:Black),FILL(0C0E0FFH),HIDE, |
LINEWIDTH(1)
END
CODE
OPEN(WINDOW)
0{PROP:text}=clip(0{PROP:text}) &' - Library ' & system{PROP:LibVersion,2} &'.'& system{PROP:LibVersion,3}
LOOP Ndx=1 TO MaxSlices
SliceValue[Ndx] = CHOOSE(Ndx,300,600,750,900,1050) !Total 3600 for 10 x 360 degrees
SliceColor[Ndx] = (?SliceColorBox_1-1+Ndx){PROP:Fill} !Design colors on Window... its just a test
END
DO SliceTotalRtn
0{PROP:MinWidth}=0{PROP:Width} * .75 ; 0{PROP:MinHeight}=0{PROP:Height} * .75
0{PROP:MaxWidth}=0{PROP:Width} * 2.0 ; 0{PROP:MaxHeight}=0{PROP:Height} * 2.0 !Make easy to no go too big
ACCEPT
CASE EVENT()
OF EVENT:OpenWindow ; POST(EVENT:Accepted,?RefreshBtn)
OF EVENT:Sized ; IF AutoRefresh THEN POST(EVENT:DoResize,,,1).
OF EVENT:DoResize ; IF AutoRefresh THEN DO PieRefreshRtn.
END
CASE ACCEPTED()
OF ?SliceValue_1 TO ?SliceValue_5 ; DO SliceTotalRtn ; DISPLAY(?SliceTotal)
OF ?RefreshBtn ; DO PieRefreshRtn
OF ?RandomBtn ; LOOP Ndx=1 TO MaxSlices ; SliceValue[Ndx] = RANDOM(100,999)*10 ; END
DO SliceTotalRtn ; SliceValue[MaxSlices] += (100 - SliceTotal % 100) !Total in 100's
DO SliceTotalRtn ; DO PieRefreshRtn
OF ?SliceBtn ; CLEAR(SliceValue[]) ; SliceValue[Random(1,MaxSlices)]=1000 ; DO SliceTotalRtn
PieEmptyPct=RANDOM(66,95)
PieAnglePct=RANDOM(0,99)
END
IF AutoRefresh THEN
CASE EVENT()
OF EVENT:Accepted OROF EVENT:NewSelection ; DO PieRefreshRtn
END
END
END
CLOSE(WINDOW)
!----------------------------
SliceTotalRtn ROUTINE
SliceTotal = 0
LOOP Ndx=1 TO MaxSlices ; SliceTotal += SliceValue[Ndx] ; END
EXIT
PieRefreshRtn ROUTINE
DATA
PieW SIGNED
PieH SIGNED
CODE
DO SliceTotalRtn
IF PieEmptyPct >= 100 THEN PieEmptyPct=0 ; DISPLAY.
IF ~PieEmptyPct THEN
PieWholeValue = SliceTotal
?PieWholeValue{PROP:Tip}='0% Empty so equals Slice Total '& SliceTotal
ELSE
!Help: Supplying a WholeValue parameter that is greater than the sum of all the slices array elements creates a pie chart with a piece missing.
PieWholeValue = SliceTotal / ((100-PieEmptyPct) / 100)
?PieWholeValue{PROP:Tip}=PieEmptyPct & '% Empty' & |
'<13,10>= Slice Total / (1 - Empty%)' & |
'<13,10>= '& SliceTotal & ' / (1 - '& PieEmptyPct/100 &')' & |
'<13,10>'& PieEmptyPct & '% Empty = '& INT(360 * PieEmptyPct/100) &' Degrees'
END
IF PieAnglePct >= 100 THEN PieAnglePct=0 ; DISPLAY.
IF ~PieAnglePct THEN
PieAngleValue = 0
?PieAngleValue{PROP:Tip}='0% Angle so Zero Angle Value'
ELSE
!Help: The slices of the pie are created clockwise from the StartAngle parameter as a fraction of the WholeValue.
PieAngleValue = PieWholeValue * (PieAnglePct/100)
?PieAngleValue{PROP:Tip}=PieAnglePct & '% Angle<13,10>= Whole Value * Angle %' & |
'<13,10>= '& PieWholeValue & ' * '& PieAnglePct/100 & |
'<13,10>'& PieAnglePct &'% Angle = '& INT(360 * PieAnglePct/100) &' Degrees'
END
GETPOSITION(?PieImage1,,,PieW,PieH)
IF ~PieIsElipse THEN !If its Not an Ellipse
IF PieH > PieW THEN ! must be H = W i.e. a Square
PieH = PieW
ELSE
PieW = PieH
END
END
myPieDraw(Window, ?PieImage1,SliceValue[],SliceColor[], PieW, PieH,PieDepth,PieWholeValue,PieAngleValue) !, Color:None ) !,LONG pBackColor=COLOR:White)
! Show PIE Source Code above Chart in Glo:PieCode TEXT contro
IF PieEmptyPct THEN Glo:PieCode=CLIP(Glo:PieCode) &' Total='& SliceTotal &' Empty='& PieEmptyPct &'%'.
IF PieAnglePct THEN Glo:PieCode=CLIP(Glo:PieCode) &' Angle='& PieAnglePct &'%'.
myPieDraw PROCEDURE(WINDOW pWnd, SIGNED pImageFeq,*SIGNED[] pSlices,*LONG[] pColors,SIGNED pPieW,SIGNED pPieH,SIGNED pDepth=0, |
SIGNED pWholeValue=0,SIGNED StartAngle=0,LONG pBackColor=COLOR:White)
Indent LONG,AUTO !Indent to leave margins
CODE !From robertorenz templatemaker myPie
SETTARGET(pWnd,pImageFeq) ! Draw into the IMAGE control, Must have (Window,). Makes (X,Y) relative to Image Box
BLANK() ! WIPE all prior graphics within the SetTarget(Wnd,Image) (no resize artifacts). FYI can BLANK(x,y,w,h)
IF pBackColor <> COLOR:None THEN !Carl Allow COLOR:None to omit BOX
SETPENCOLOR(pBackColor) ! paint the chosen background color
BOX(0,0,pImageFeq{PROP:Width},pImageFeq{PROP:Height},pBackColor)
END
SETPENCOLOR(COLOR:Black) ! slice outlines
Indent = CHOOSE(pPieW<pPieH,pPieW,pPieH) * .025 !Carl added a margin of 2.5%. This could a parameter of the call
pPieW -= Indent * 2
pPieH -= Indent * 2
PIE(Indent,Indent, pPieW,pPieH, pSlices[],pColors[],pDepth,pWholeValue,StartAngle)
SETTARGET()
! Show PIE Source Code above Chart in Glo:PieCode TEXT control
Glo:PieCode='PIE('& Indent &','& Indent &','& pPieW &','& pPieH &',Value[],Color[],'& pDepth &','& pWholeValue &','& StartAngle &')'
RETURN
