Active Scripting

Mike_Duglas · January 19, 2020, 4:33pm

How to run VBScript and get a result? You can RUN(‘file.vbs’) and parse output file to obtain a result, but there is another approach: Active Scripting.
3 scripting engines are installed by default: VBScript, JScript and ChakraJS, and can be easily used in Clarion applications.

VBScript, areas of use:

Active Directory
ADO
Computer Hardware
Group Policy
IIS
Logs
Mathematics
Messaging and Communication
Microsoft Office
Networking
Operating System
Other Directory Services
Printing
Security
Service Packs and Hot Fixes
Storage
Terminal Server
WMI

Demo application allows to run scripts and evaluate expressions.

VBScript examples.

Calculator:
type an expression like “0.75 / 4” or “sqr(5) + log(13)” and press Evaluate expression button.
Reusable scripts:
paste following code (the Fibonacci numbers function) into script text box and press Run script button:

function fibonacci(limit)
  dim a,b,c,res
  a=0
  b=1
  res="Fibonacci numbers from 1 to "& limit & vbCrLf

  for i=1 to limit
    c=a+b
    a=b
    b=c
    res=res & c & vbCrLf
  next

  fibonacci=res
end function

then you can evaluate “fibonacci” function many times with different arguments, for example type “fibonacci(10)” and press Evaluate expression button,
next time type “fibonacci(20)” and press Evaluate expression button.

Same is true for JScript and ChakraJS.

Mike_Duglas · February 3, 2020, 3:49pm

Practical use of Active Scripting: Regular Expressions

Clarion has a very limited support of regular expressions. With javascript we can use the full power of regular expressions:

search for a match between a regular expression and a specified string
replace some or all matches
turn a string into an array of strings, by separating the string at each instance of a specified separator string

An example of replace feature:

var name1 = 'John Smith';
var re = /(\w+)\s(\w+)/;
var name2 = name1.replace(re, '$2, $1');  // expected result: 'Smith, John'

An example of split feature:

var s = 'Harry Trump ;Fred Barney; Helen Rigby ; Bill Abel ;Chris Hand ';
var re = /\s*(?:;|$)\s*/;
var arr = s.split(re);

I wrote a class that implements js regular expressions properties and methods:

Test - returns true if match found
Exec - returns an array of matches
Match - returns an array of matches
Search - returns the index of the first match
Replace - returns a new string with some or all matches of a pattern replaced by a replacement
ReplaceFunction - uses a function to be invoked to create the new substring
Split - returns an array of strings, split at each point where the separator occurs in the given string
LastIndex - the index at which to start the next match

so examples above can be written in Clarion like this:

  re.CreateNew('(\w+)\s(\w+)')
  name = re.Replace(s, '$2, $1')

and this

  re.CreateNew('\s*(?:;|$)\s*')
  len = re.Split(s)
  LOOP i = 1 TO len
    name = re.MatchedItem(i)
  END

Mike_Duglas · February 5, 2020, 3:56pm

Practical use of Active Scripting: ADO

For example, let’s see how to extract data from Microsoft Access database using VBScript (you can test it in the demo program):

' open connection
Dim conn
Set conn = CreateObject("ADODB.Connection")
conn.Open "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=address.mdb"

' execute SQL query and get recordset
Dim rs
Set rs = CreateObject("ADODB.Recordset")
rs.Open "SELECT * FROM address", conn

Do Until rs.EOF
  MsgBox "CustomerID="& rs.Fields("CustomerID") &"; Company="& rs.Fields("Company")
  rs.MoveNext
Loop

Set rs = nothing
Set conn = nothing

Here is same task implemented with helper class:

!- open connection
IF ado.conn.Open('Provider=Microsoft.Jet.OLEDB.4.0;Data Source=address.mdb') = adStateOpen

  !- execute SQL query and get recordset
  IF ado.rs.Open('SELECT * FROM address') = adStateOpen

    !- loop through recordset and store field values into quueue
    LOOP WHILE NOT ado.rs.EOF()
      CLEAR(AddrQ)
      Adr:CustomerID = ado.rs.Field('CustomerID')
      Adr:Company    = ado.rs.Field('Company')
      Adr:Street     = ado.rs.Field('Street')
      ADD(AddrQ)

      !- next record
      ado.rs.MoveNext()
    END

    !- close recordset
    ado.rs.Close()
  ELSE
    MESSAGE('Recordset.Open failed')
  END

  !- close conection
  ado.conn.Close()
ELSE
  MESSAGE('Connection.Open failed')
END

Mike_Duglas · February 7, 2020, 7:09pm

Practical use of Active Scripting: WMI

Short list of WMI tasks:

BIOS information
Display configuration
Video adapter configuration
Serial ports information
CPU information for each processor
Disk drives information
Physical memory information
User accounts
Daylight Saving Time
Kill the specified program
Logoff current user on any WMI enabled computer
Ethernet adapters’ link speed
List printers with status and number of printjobs, or pause or resume printing on the specified printer(s), or flush all printjobs, or list all printers, their status and number of printjobs
Windows Registry
Reboot/Shut down any WMI enabled computer on the network
Services
Startup commands (Startup folder and registry Run)
Synchronize your computer’s system time with any webserver
Uptime for any WMI enabled computer
and many others

With Active Scripting any of above task is just few lines of code. For example, all disk drives information:

  wmi.Connect()
  wmi.ExecQuery('Select * from Win32_DiskDrive')

  LOOP i=1 TO wmi.items.Count()
    CLEAR(DriveQ)
    DriveQ:Caption           = wmi.items.GetProp(i, 'Caption')
    DriveQ:Description       = wmi.items.GetProp(i, 'Description')
    DriveQ:Manufacturer      = wmi.items.GetProp(i, 'Manufacturer')
    DriveQ:Model             = wmi.items.GetProp(i, 'Model')
    DriveQ:Name              = wmi.items.GetProp(i, 'Name')
    DriveQ:Partitions        = wmi.items.GetProp(i, 'Partitions')
    DriveQ:Size              = wmi.items.GetProp(i, 'Size')
    DriveQ:Status            = wmi.items.GetProp(i, 'Status')
    DriveQ:SystemName        = wmi.items.GetProp(i, 'SystemName')
    DriveQ:TotalCylinders    = wmi.items.GetProp(i, 'TotalCylinders')
    DriveQ:TotalHeads        = wmi.items.GetProp(i, 'TotalHeads')
    DriveQ:TotalSectors      = wmi.items.GetProp(i, 'TotalSectors')
    DriveQ:TotalTracks       = wmi.items.GetProp(i, 'TotalTracks')
    DriveQ:TracksPerCylinder = wmi.items.GetProp(i, 'TracksPerCylinder')
    ADD(DriveQ)
  END

How to terminate running process:

  wmi.Connect()
  !- find all processes with specific caption
  wmi.ExecQuery(printf('Select * from Win32_Process WHERE Caption=%S', pProcess))

  !- terminate each process
  LOOP i=1 TO wmi.items.Count()
    wmi.items.CallMethod(i, 'Terminate')
  END

How to reboot specific computer:

  !- required "Shutdown" privelege
  wmi.Connect(pMachineName, 'Shutdown')

  !- find primary OS
  wmi.ExecQuery('SELECT * FROM Win32_OperatingSystem WHERE Primary=True')

  !- reboot
  wmi.items.CallMethod(1, 'Reboot()')
  IF wmi.ErrNumber()
    MESSAGE(wmi.ErrDescription())
  END

Querying the amount of memory a particular process uses:

  wmi.Connect()
  wmi.ExecQuery(printf('SELECT * FROM Win32_Process WHERE Name = %S', pProcess))
  LOOP i=1 TO wmi.items.Count()
    CLEAR(MemQ)
    MemQ:Amount = wmi.items.GetProp(1, 'WorkingSetSize')
    ADD(MemQ)
  END

Mike_Duglas · February 9, 2020, 7:21pm

Practical use of Active Scripting: Windows Search

Windows Search is a desktop search platform that has instant search capabilities for most common file types and data types.

Let’s look at some examples.

Search by file name
To find all “setup.exe” files you define “System.FileName=‘setup.exe’” condition:

  ws.Search('SELECT System.ItemPathDisplay FROM SystemIndex WHERE System.FileName=''setup.exe''')
  LOOP UNTIL ws.EOF()
    CLEAR(FilesQ)
    FilesQ:Name = ws.rs.Field('System.ItemPathDisplay')
    ADD(FilesQ)
    ws.MoveNext()
  END

To perform a search by mask (“setup.*”) use ‘LIKE’ operator:

ws.Search('SELECT System.ItemPathDisplay FROM SystemIndex WHERE System.FileName LIKE ''setup.*''')

Search by file content
You can search for words and phrases, below “FREETEXT” predicate is used:

ws.Search('SELECT System.ItemPathDisplay FROM SystemIndex WHERE FREETEXT(''Windows Search'')')

Search by document type
Next example finds all big pictures (image size is greater than 1024x768):

ws.Search('SELECT System.ItemPathDisplay FROM SystemIndex WHERE System.Kind = ''Picture'' AND System.Image.VerticalSize >= 768 AND System.Image.HorizontalSize >= 1024')

You can request not only System.ItemPathDisplay (which actually is full filename), but any type of information: size, modified date, author, image width, color depth and so on.

Windows Search allows requests against remote machine as well, all you need is machine name:
SELECT System.ItemPathDisplay FROM MACHINENAME.SystemIndex

SerhatSatir · March 15, 2020, 7:42am

How do I declare wmi to use in Clarion?

Mike_Duglas · March 15, 2020, 8:00am

Serhat,

TVBWMI class for wmi, TJSRegExp for regexp, TVBADO for ado, TWinSearch for winsearch.

wmi TVBWMI

SerhatSatir · March 22, 2020, 2:22pm

Hi Mike,
Do you have a simple/sample code?

Mike_Duglas · March 22, 2020, 2:45pm

What’s wrong with the sample code from above part “Practical use of Active Scripting: WMI”?

sk2107 · May 26, 2022, 7:10pm

Hi,
I am new here and it seems the demo is not there. any chance of finding a copy anywhere.

with lots of thanks.

Mike_Duglas · May 26, 2022, 7:29pm

The demo has been moved here.

sk2107 · May 26, 2022, 9:46pm

Thanks a lot. so appreciated

sk2107 · October 15, 2022, 8:17pm

Hello Mike,
the test application is an amazing example.

May I ask what is supposed to be defined in the clarion application to be able to use this method.

Best Regards

Mike_Duglas · October 15, 2022, 9:25pm

Nothing except INCLUDE active scripting inc file(s).

sk2107 · October 15, 2022, 9:40pm

Thank you. but where can I find them?

Regards

Mike_Duglas · October 15, 2022, 10:03pm

If you want to buy let me know I will put them on to ClarionShop.

sk2107 · October 16, 2022, 4:57am

May I have an idea about the pricing.

Regards

Mike_Duglas · October 16, 2022, 9:16am

$200 - core classes only, $300 - full package.

sk2107 · January 25, 2023, 7:09pm

Hello,
Does it work with clarion 6.3 completely?

Mike_Duglas · January 25, 2023, 7:20pm

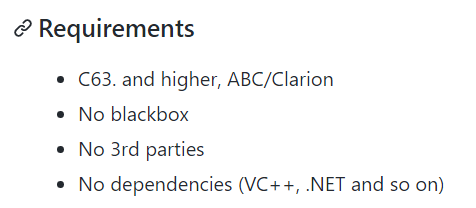

From the home page:
